A lighting solution for greenhouse vine crops
The new VYNE series provides supplemental lighting within the high-wire vine crop canopy (intercanopy lighting). Featuring, multiple spectra, VYNE provides growers the choice of spectrum to balance between lighting efficacy with PhysioSpec™ Dual R9 and crop quality & yield with Broad R6.
INTRODUCING A LIGHT FOR INTERCANOPY

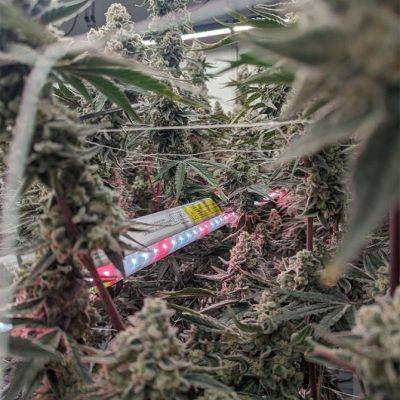

When applying top lighting to high wire crops, much of the light is absorbed by the top of the canopy. By adding VYNE deeper into the canopy, light can now reach leaves that are still photosynthetically active, ultimately increasing plant yield.
MARKET LEADING EFFICACY
VYNE offers two spectrum choices – Broad R6 and Dual R9.
EASY INSTALLATION
VYNE includes an integrated driver and daisy-chain connection of light fixtures.
AVAILABLE IN TWO LENGTHS
VYNE is offered in both 2 meters (6.5 feet) and 2.5 meters (8 feet).

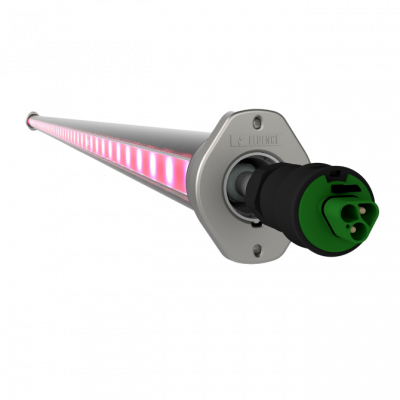

VYNE SPECS
VYNE is a greenhouse supplemental intercanopy light with multiple spectra offerings. With single and double row installation options, helping create consistent levels of lighting, resulting in higher light levels in the canopy.
- Spectrum Broad R6 and Dual R9B
- Input Power 72-100W
- Efficacy 3.0 µmol/J (Broad R6)
3.3 µmol/J (Dual R9B)
- Mounting Position Inter-canopy
- Max. Ambient Temperature 113°F / 45°C
- Lifetime (Driver and LED Q90) > 36,000 hours
| Part | Length | Width | Height | Weight |
|---|---|---|---|---|
| VYNE 2.5 m Light Fixture | 98.4” 250 cm | 2.6” 6,7 cm | 3.5” 9,0 cm | 5.95 lbs 2,7 kg |
| VYNE 2.0 m Light Fixture | 82.5” 210 cm | 2.6” 6,7 cm | 3.5” 9,0 cm | 4.85 lbs 2,2 kg |
To create the most advanced spectrum for complete physiological plant growth, we had to challenge every assumption. Not only did this make the spectra better, it made it beautiful. Previously, 660 nm (red) and 450 nm (blue) were the most efficient LED packages, and coincided with peak Chl A and Chl B absorption areas. This led to a negligence of key photoreceptors and pigments outside this range.
