The NEW VYPR 4 maintains much of the familiar VYPR platform produce growers know and trust, and it is now available.

Efficient and powerful for bountiful harvests all year long

Built upon patented thermal management technologies, the latest VYPR top lights feature market-leading efficacies and high light output per fixture. Thus, helping reduce the fixture count and system cost per lit area to accelerate the adoption of LED horticulture lighting.

With more compact power supplies, beam widening reflectors and new mounting options, the latest VYPR empowers growers to achieve their growing targets all year round.

fluence pink light
Slim Form Factor

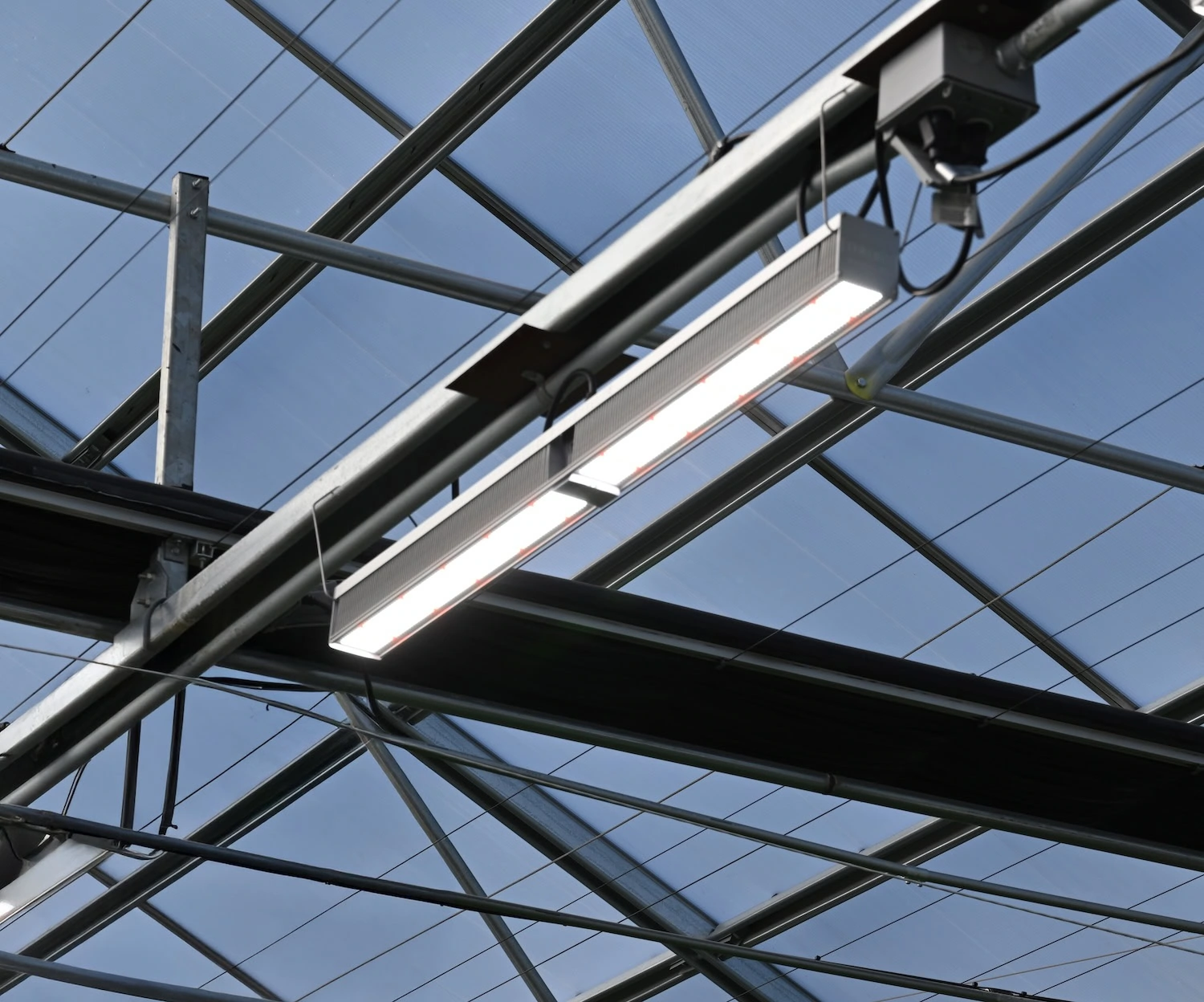

VYPR’s compact power supply and linear design result in a reduced shadow on plants, ideal for greenhouse supplemental lighting

Easy Installation

The VYPR series has 6 different mounting hardware options for quick and easy installation, to fit your space.

Powerful & Efficient

The VYPR Series features 6 different spectra and efficacies of up to 3.8 µmol/J and PPFs up to 2330 µmol/s per fixture.

VYPR LED grow light with pink hue gracefully suspended from ceiling beam, featuring visible connecting cables; Fluence design for optimized cannabis cultivation and controlled environment agriculture, Austin, Texas.
Smaller, more efficient power supply unit
Vypr LED grow light fixture by Fluence, Austin-based LED lighting company for controlled environment agriculture, emits faint pink glow on sleek metal frame; optimized for cannabis cultivation with elegantly suspended cables.

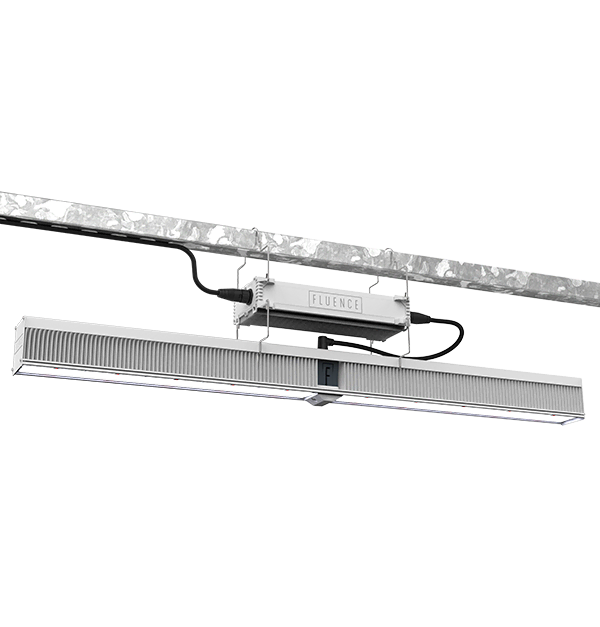

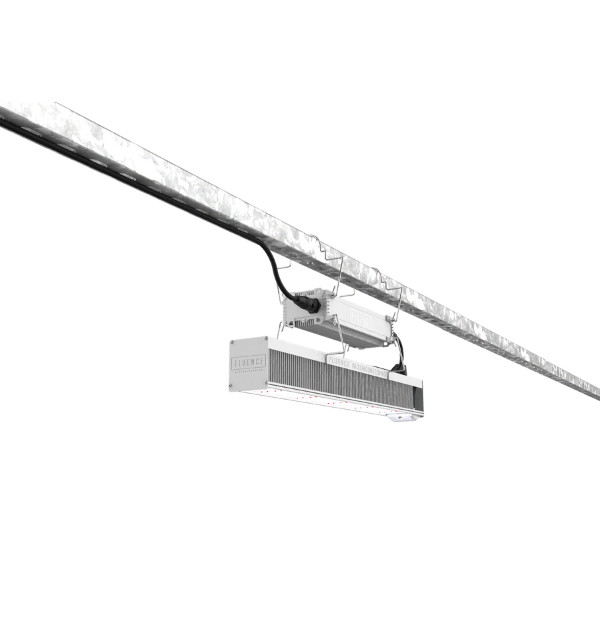

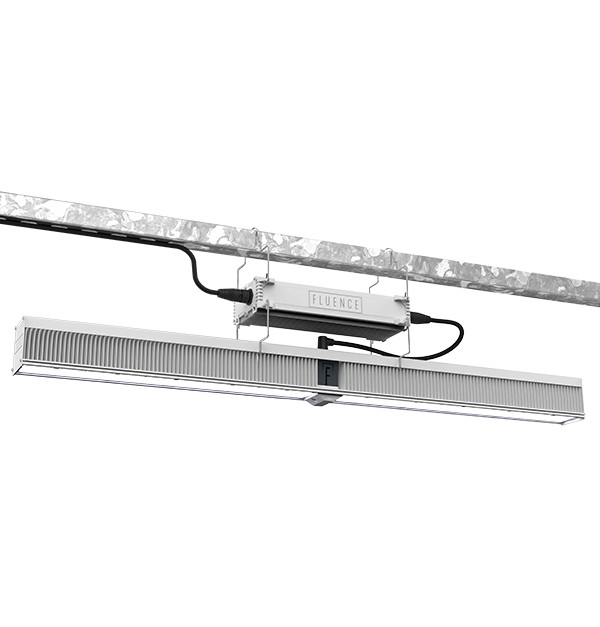

Design flexibility with multiple mounting options

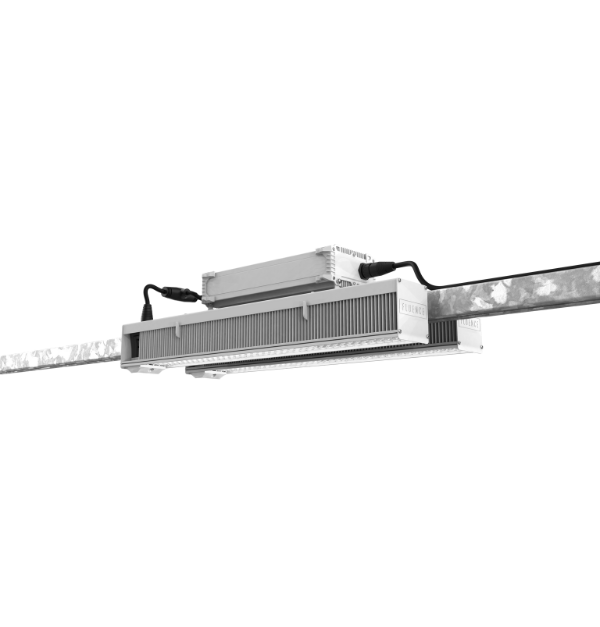

VYPR 3x and VYPR DUO 3x2

With a compact form factor, flexible mounting options and six spectra offerings to choose from, the VYPR 3x series offers design flexibility to growers who previously were unable to install supplemental lighting. The VYPR 3x and 3x2 delivers high light output and consistent uniformity with market leading efficacies up to 3.7 μmol/J, while offering growers with low mounting heights a solution for year-round crop production.

The modular system can be configured as a single fixture (3x) or in a duo configuration (3x2). With the new hanging hardware options, the duo configuration can be remote and cradle mounted.

Learn More

VYPR PRODUCT SPECIFICATIONS

Now featuring six spectra, VYPR 3p offers high fixture PPF up to 2330 µmol/s and high efficacy up to 3.8 µmol/s, enabling the direct replacement of a 1000W HPS fixture at more than 40% energy savings.

The optional reflector kit provides a wider light pattern and uniform PPFD at plant canopy.

  • Light Output PPF 1690 – 2330 µmol/s
  • Efficacy 2.7 – 3.8 µmol/J @ 277V AC
  • AC Input Power 610 – 623W @ 277V AC
  • Certifications ETL, cETL, CE, Wet Location
  • Warranty 5 Year Standard Warranty
  • PhysioSpec™ Spectra Broad R3 (Greenhouse), Broad R4 (Indoor), Broad R6, Broad R8, Dual R9B High Efficacy, Dual R9B, Dual R5B,
PartLengthWidthHeightWeight
VYPR 3p
Light Fixture
42.33”
1071 mm
2.91”
74 mm
3.23”
82 mm
7.8 lbs
3.5 kg
PSU 120-277V AC12.99”
330 mm
5.26”
134 mm
2.56”
65 mm
7.1 lbs
3.2 kg
PSU 347-480V AC11.06”
281 mm
6.34”
161 mm
2.47”
63 mm
7.4 lbs
3.4 kg

EFFICIENT AND POWERFUL

Built upon patented thermal management technologies, VYPR 3x features market leading efficacies up to 3.7 μmol/J, enabling the replacement of HPS lights with significant energy savings.

At a half of VYPR 3p’s size and power, VYPR 3x is ideal for distributing light uniformly in grow environments with constrained ceiling heights. VYPR 3x is also suitable for low DLI crops, and for extension of the natural photoperiod.

Combined with Fluence’s beam widening reflectors, VYPR 3x further improves light uniformity and reduces the number of fixtures required in a given cultivation area, lowering the capital investment and accelerating the LED adoption in horticulture lighting.

Physiospec™ SpectrumLight Output PPF (µmol/s)AC Power @ 277 V AC (W)Efficacy @ 277 V AC (µmol/J)
BROAD R3 (Greenhouse)8883352.7
BROAD R4 (Indoor)8763362.6
BROAD R69123122.9
BROAD R89943143.2
DUAL R9B High Efficacy12003223.7
DUAL R9B11343233.5
DUAL R5B (Antho)8783242.7
  • Warranty 5 Year Standard Warranty
  • Certifications ETL, cETL, CE, wet location

EFFICIENT AND POWERFUL

Built upon patented thermal management technologies, VYPR 3x & DUO 3x2 features market leading efficacies up to 3.8 μmol/J, enabling the replacement of HPS lights with significant energy savings.

Compared to VYPR 3p, at the same mounting height, VYPR DUO 3x2 Remote Mount can distribute the same amount of light to a much larger grow area. It provides a cost-effective solution for grow environments with constrained ceiling heights, such as indoor or low greenhouses.

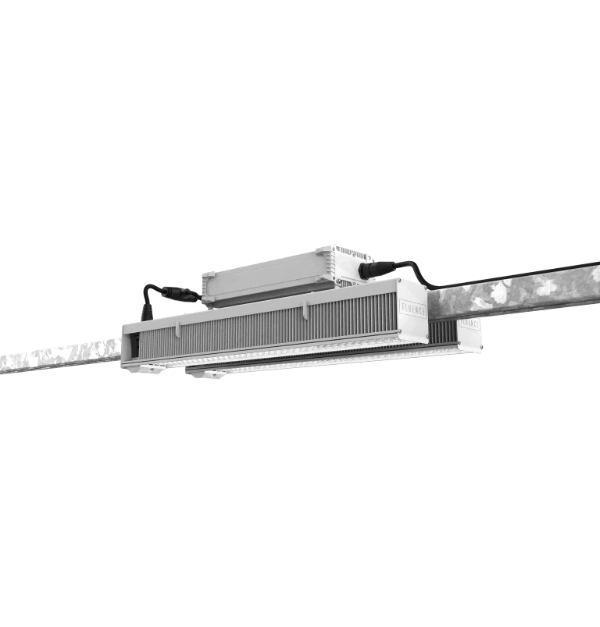

Compared to VYPR 3p, VYPR DUO 3x2 Cradle Mount emits the same amount of light but at a half of VYPR 3p’s fixture length. This allows the installation of many more fixtures on a single truss, drastically increasing the available light per truss for high PPFD applications.

Physiospec™ SpectrumLight Output PPF (µmol/s)AC Power @ 277 V AC (W)Efficacy @ 277 V AC (µmol/J)
BROAD R3 (Greenhouse)16926172.7
BROAD R4 (Indoor)16656202.7
BROAD R618016093.0
BROAD R819296013.2
DUAL R9B High Efficacy23176133.8
DUAL R9B21956163.6
DUAL R5B (Antho)17046202.7
  • Warranty 5 Year Standard Warranty
  • Certifications ETL, cETL, CE, wet location

Maximize Greenhouse GrowthPHYSIOSPEC™ SPECTRA

View Our Spectra

Introducing four new spectra designed for the unique and specific needs of growers worldwide.

From broad white to high red, Fluence PhysioSpec™ is now offering BROAD and DUAL spectrum options on VYPR Series. This flexibility prioritizes the grower’s needs in optimizing spectral content and light levels for any crop, at any growth stage, in any geographic location.

With 6 spectra available on the latest VYPR addition, VYPR Series top light is now offering higher efficacies (up to 3.8 µmol/J) and higher photosynthetic photon flux (PPF) (up to 2330 µmol/s) per fixture over comparable lighting technologies.

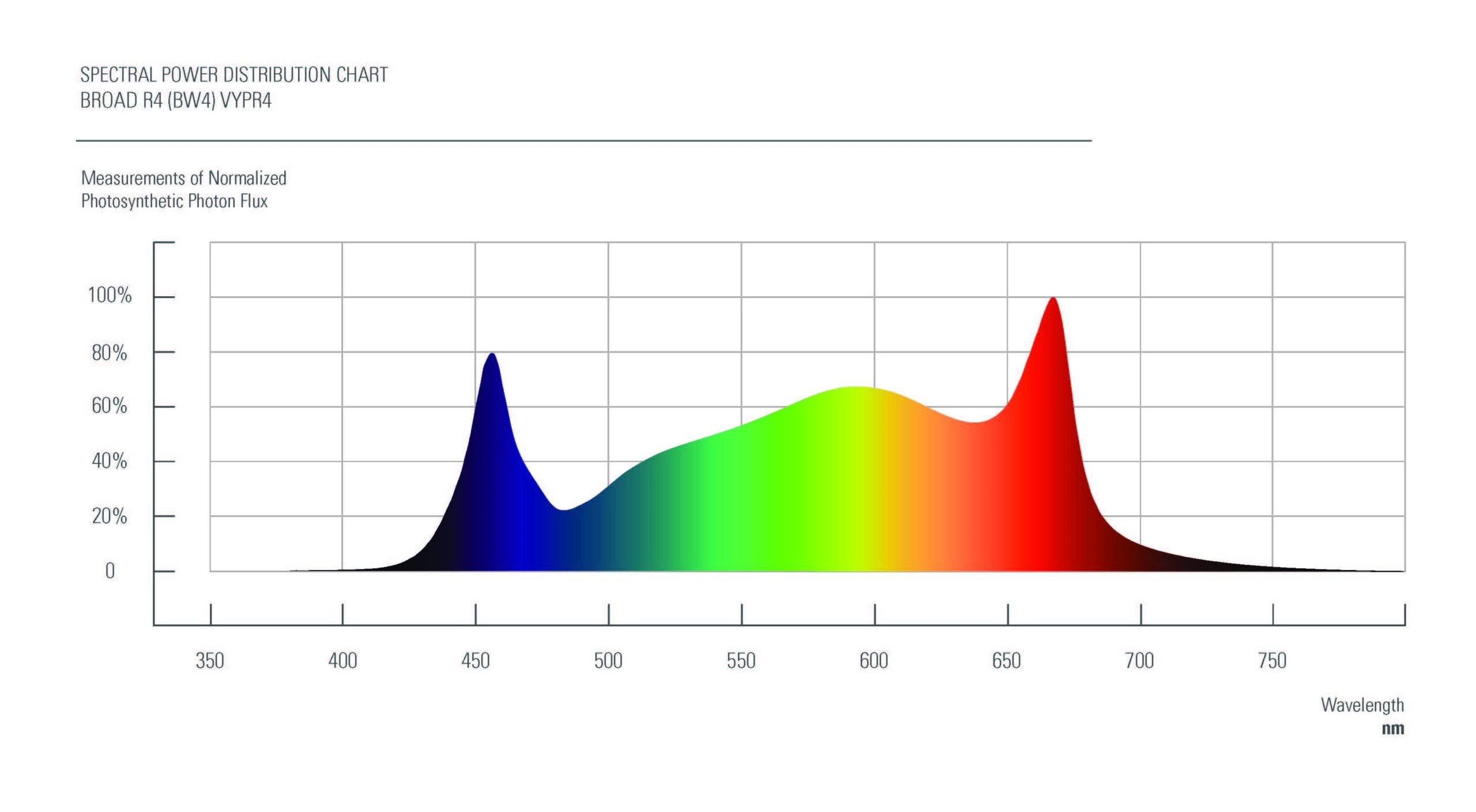

PhysioSpec ™ BROAD Spectra

The PhysioSpec™ BROAD Spectra offers photon emission across the PAR 400-700nm continuous wavelength range, balancing energy efficiency with quality of light for desired plant response and human work environment.

wavelength broad

PhysioSpec ™ DUAL Spectra

The PhysioSpec™ DUAL Spectra features two narrow spectral bands that maximize energy efficiency, aiming to further reduce energy cost and operational expense.

Vypr graph LED light spectrum by Fluence, Austin: high intensity peak at 680 nm and lower intensity peaks near 400 nm, optimized for cannabis cultivation and controlled environment agriculture.

VYPR SeriesCase Studies

The Fluence Innovator Spotlight series highlights the transformation currently underway in our commercial agriculture system, and the new era of companies, growers and technologies leading the way.

From organic herb producers and cannabis cultivators to the world’s leading research institutions, each Spotlight goes behind the scenes to illuminate the challenges and opportunities driving our agriculture system to new forms of productivity, efficiency and sustainability.
