The NEW SPYDR 3 maintains much of the familiar SPYDR platform produce growers know and trust.

SPYDR SeriesLight Up Your Business to New Heights

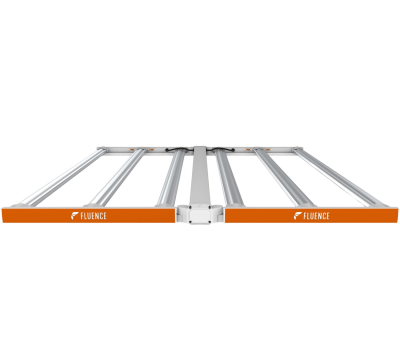

Meet SPYDR

A bright and flexible rack lighting solution that maximizes the grow space for higher crop yields and better quality

Whether growing cannabis, food or ornamental plants, the Fluence SPYDR Series was designed for single or multi-tier growers who want to optimize their grow space for the maximum crop yield while producing the highest quality crops.

Fluence SPYDRFANG LED lighting for cannabis cultivation; enhance crop production with optimized illumination. Explore growth solutions, find reseller options, based in Austin, Texas.

PRECISE and UNIFORM LIGHTING FOR INDOOR RACKS

In 3 sizes and with 10+ rack mounting options, the SPYDR Series can illuminate all types of vertical racks and grow tables with precise and uniform light on the plant canopy. The two PPF output levels and built-in dimmability enable the exact and dynamic PPFD control over each of the plant growing stages.  The SPYDR Series is the indoor lighting solution for all growers looking for an edge in efficiency, quantity, and quality.

SPYDR 2 series is ideal for high PPFD cultivation with single or multi-tier racking – from veg to bloom. The series has an average PPFD up to 1,060 µmol/m2/s over a 4’x4’ (122×122 cm) canopy.

Spydr new features
Detachable Power Supply

The SPYDR 2 Series features a detachable Power Supply that can be mounted remotely on the side of a rack or on an adjacent wall to remove heat from your grow space. With the power supply remote mounted, the remaining SPYDR 2 fixture is only 1.3” (33 mm) thin (4.6” (117 mm) with power supply attached).

Easy Mounting Options

With the ability to maximize use of your growing space, SPYDR 2  has various hardware options for easy mounting to all types of racks and tables with no drilling or other modifications to the rack system.

Recommended mounting height of 6”–12″ (152 x 305 mm) above plant canopy.

Push-lock Connectors

For quick and easy installation, all SPYDR 2 Series fixtures and associated cables have been updated with Push-Lock connectors. Power and dimming cables now snap together with a light push while still retaining their IP66 wet-location rating.

New SPYDR 2h

28% increase in PPF results in greater efficiency and maximizes space with greater light intensity.

SPYDR 2 SPECS

The SPYDR 2h is a bright and flexible rack lighting solution that maximizes the grow space for higher crop yields and better quality. Whether growing cannabis, food or ornamental plants, the Fluence SPYDR Series was designed for single or multi-tier growers who want to optimize their grow space for the maximum crop yield while producing the highest quality crops.

  • Light Output PPF 2180 µmol/s
  • Efficacy 2.75 µmol/J @ 277V AC
  • AC Input Power 790W @ 277V AC
  • Certifications IEC60598-1, UL 8800, UL 1598 Wet Location, DLC
  • Warranty 5 Year Limited Warranty
  • Spectrum PhysioSpec™ Broad R4
PartLengthWidthHeightWeight
SPYDR 2h 47”
Light Fixture
47”
1194 mm
42.80”
1087 mm
1.26”
32 mm
16.7 lbs
7.6 kg
PSU Power Supply
230-480V AC
11.50”
292 cm
6.41”
163 mm
2.47”
63 mm
7.1 lbs
3.2 kg

SPYDR 2i is a high-performance, full-cycle top-lighting solution for commercial horticulture cultivation, with the power to scale from vegetative growth to higher light intensities in bloom. It was designed for commercial growers to push the envelope with high-PPFD cultivation practices along with sophisticated CO2 supplementation.

  • Light Output PPF 1700 µmol/s
  • Efficacy 2.7 µmol/J @ 277 AC
  • AC Input Power 631W @ 277V AC
  • Certifications UL 8800, UL 1598 Wet Location, DLC
  • Warranty 5 Year Standard Warranty
  • Spectrum PhysioSpec Indoor™
PartLengthWidthHeightWeight
SPYDR 2i 47”
Light Fixture
47”
1194 mm
42.80”
1087 mm
1.26”
32 mm
16.7 lbs
7.6 kg
PSU Power Supply
120-277V AC
13.4-14.5”
340-370 mm
5.26”
134 mm
2.6”
65-67 mm
7.1 lbs
3.2 kg
PSU Power Supply
347-480V AC
11.5-13.4”
292-340 mm
5.3-6.4”
134-163 mm
2.5-2.6”
63-67 mm
7.5 lbs
3.4 kg

SPYDR 2i is a high-performance, full-cycle top-lighting solution for commercial horticulture cultivation, with the power to scale from vegetative growth to higher light intensities in bloom. It was designed for commercial growers to push the envelope with high-PPFD cultivation practices along with sophisticated CO2 supplementation.

  • Light Output PPF 1250 µmol/s
  • Efficacy 2.48 µmol/J @ 277 AC
  • AC Input Power 505W @ 277V AC
  • Certifications UL 8800, UL 1598 Wet Location, DLC
  • Warranty 5 Year Standard Warranty
  • Spectrum PhysioSpec Indoor™
PartLengthWidthHeightWeight
SPYDR 2i 33”
Light Fixture
32.50”
826 mm
42.80”
1087 mm
1.26”
32 mm
12.5 lbs
5.7 kg
PSU Power Supply
120-277V AC
13.4-14.5”
340-370 mm
5.3”
134 mm
2.6”
67 mm
7.1 lbs
3.2 kg
PSU Power Supply
347-480V AC
11.5-13.4”
292-340 mm
5.3-6.4”
134-163 mm
2.5-2.6”
63-67 mm
7.5 lbs
3.4 kg

SPYDR 2x is an early-development stage top-lighting solution for commercial horticulture cultivation, or a full-cycle top-lighting solution for home hobbyists cultivating without CO2 supplementation at ambient conditions around 400 ppm.

  • Light Output PPF 860 µmol/s
  • Efficacy 2.51 µmol/J @ 277 AC
  • AC Input Power 342W @ 277V AC
  • Certifications UL 8800, UL 1598 Wet Location, DLC
  • Warranty 5 Year Standard Warranty
  • Spectrum PhysioSpec Indoor™
PartLengthWidthHeightWeight
SPYDR 2x 47”
Light Fixture
47”
1194 mm
42.80”
1087 mm
1.26”
32 mm
16.7 lbs
7.6 kg
PSU Power Supply
120-277V & 347-400V AC
12.6-12.9” [320-330 mm]4.29”
109 mm
2.5-2.7”
64-68 mm
4.9 lbs
2.3 kg

SPYDR 2x is an early-development stage top-lighting solution for commercial horticulture cultivation, or a full-cycle top-lighting solution for home hobbyists cultivating without CO2 supplementation at ambient conditions around 400 ppm.

  • Light Output PPF 705 µmol/s
  • Efficacy 2.40 µmol/J @ 277 AC
  • AC Input Power 294W @ 277V AC
  • Certifications UL 8800, UL 1598 Wet Location
  • Warranty 5 Year Standard Warranty
  • Spectrum PhysioSpec Indoor™
PartLengthWidthHeightWeight
SPYDR 2x 33”
Light Fixture
32.50”
826 mm
42.80”
1087 mm
1.26”
32 mm
12.5 lbs
5.7 kg
PSU Power Supply
120-277V & 347-400V AC
12.6-12.9”
320-330 mm
4.3”
109 mm
2.5-2.7”
64-68 mm
4.9 lbs
2.3 kg

SPYDR SeriesCase Studies

The Fluence Innovator Spotlight series highlights the transformation currently underway in our commercial agriculture system, and the new era of companies, growers and technologies leading the way.

From herb producers and cannabis cultivators to the world’s leading research institutions, each Spotlight goes behind the scenes to illuminate the challenges and opportunities driving our agriculture system to new forms of productivity, efficiency and sustainability.

Advanced IndoorSpectra

Learn More

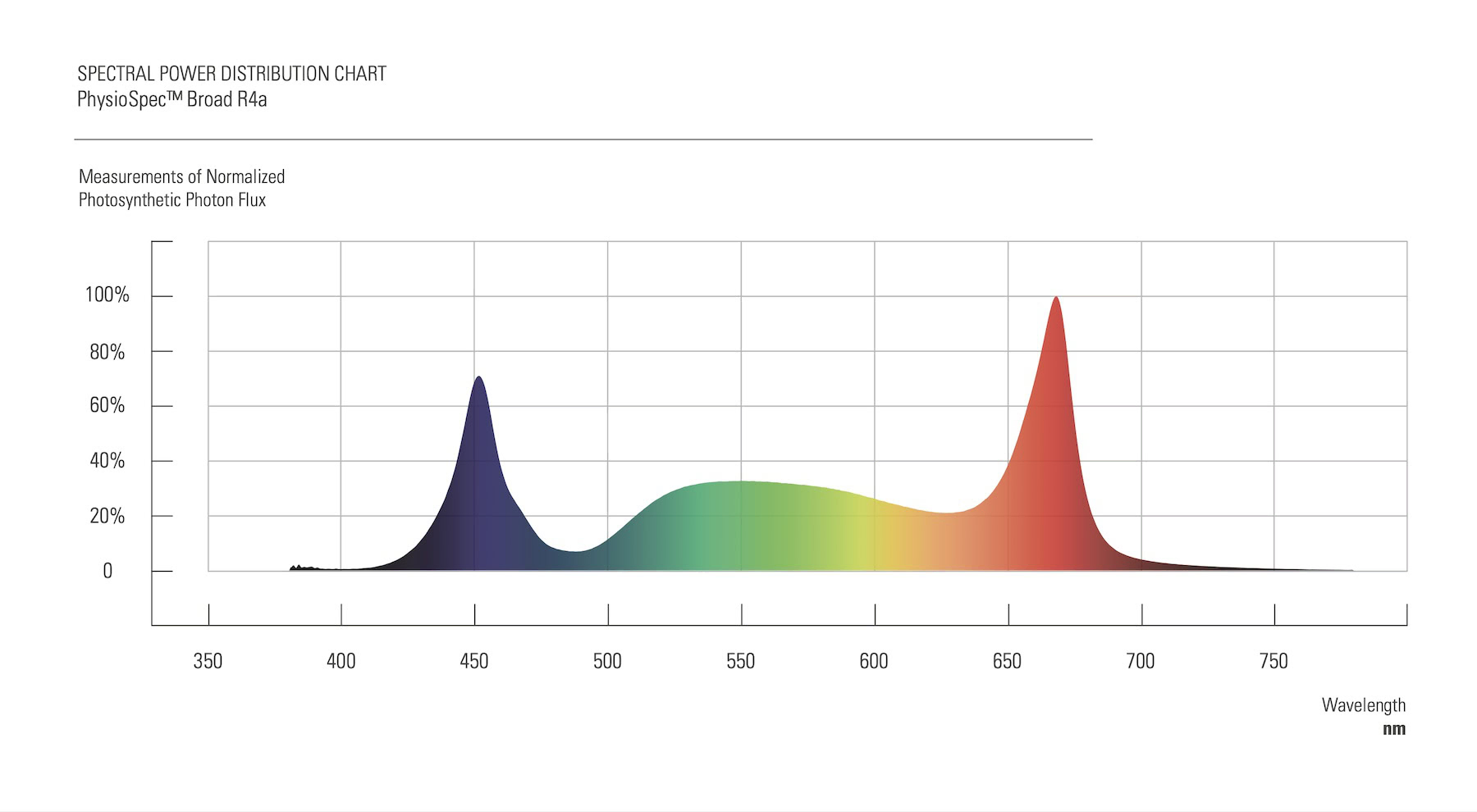

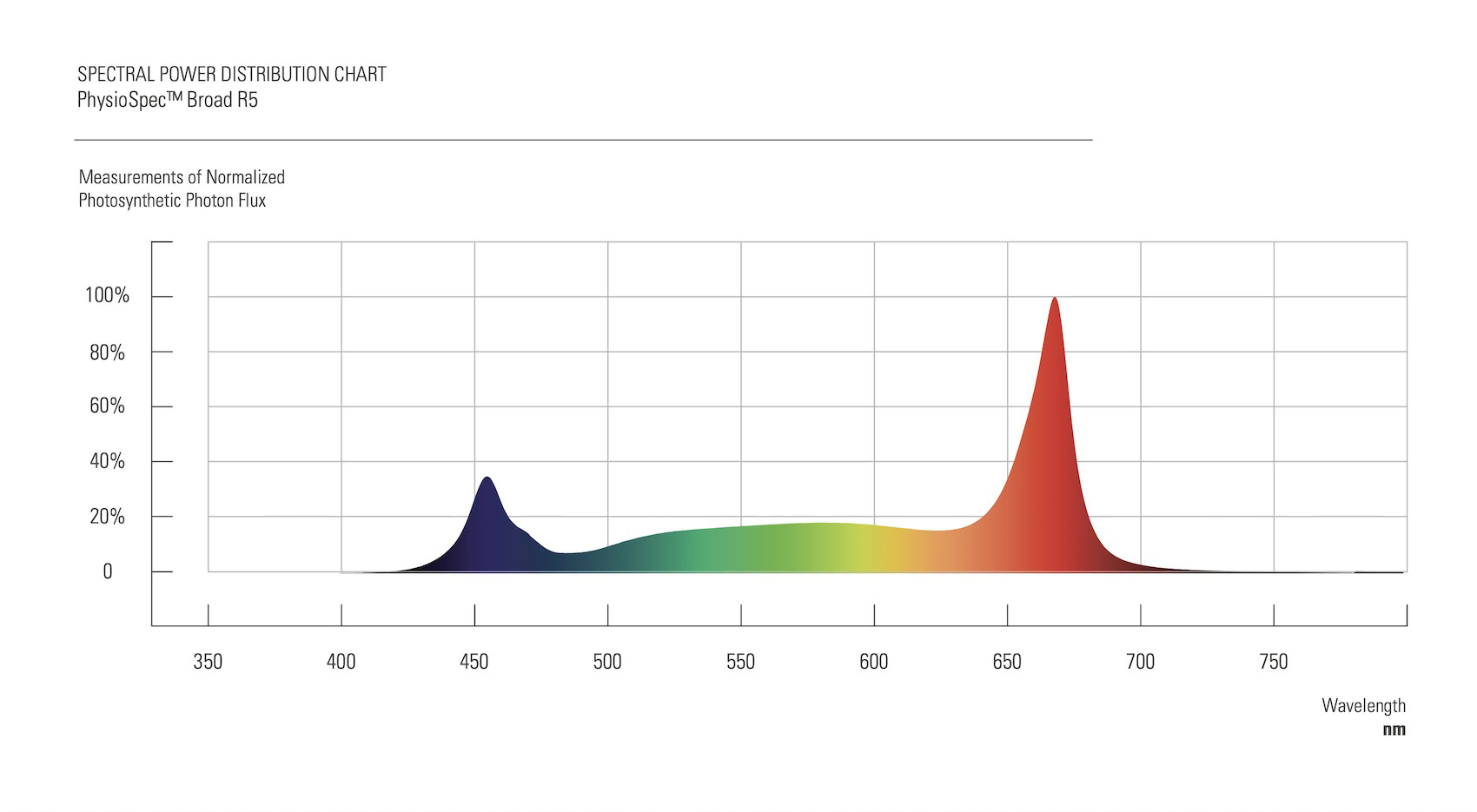

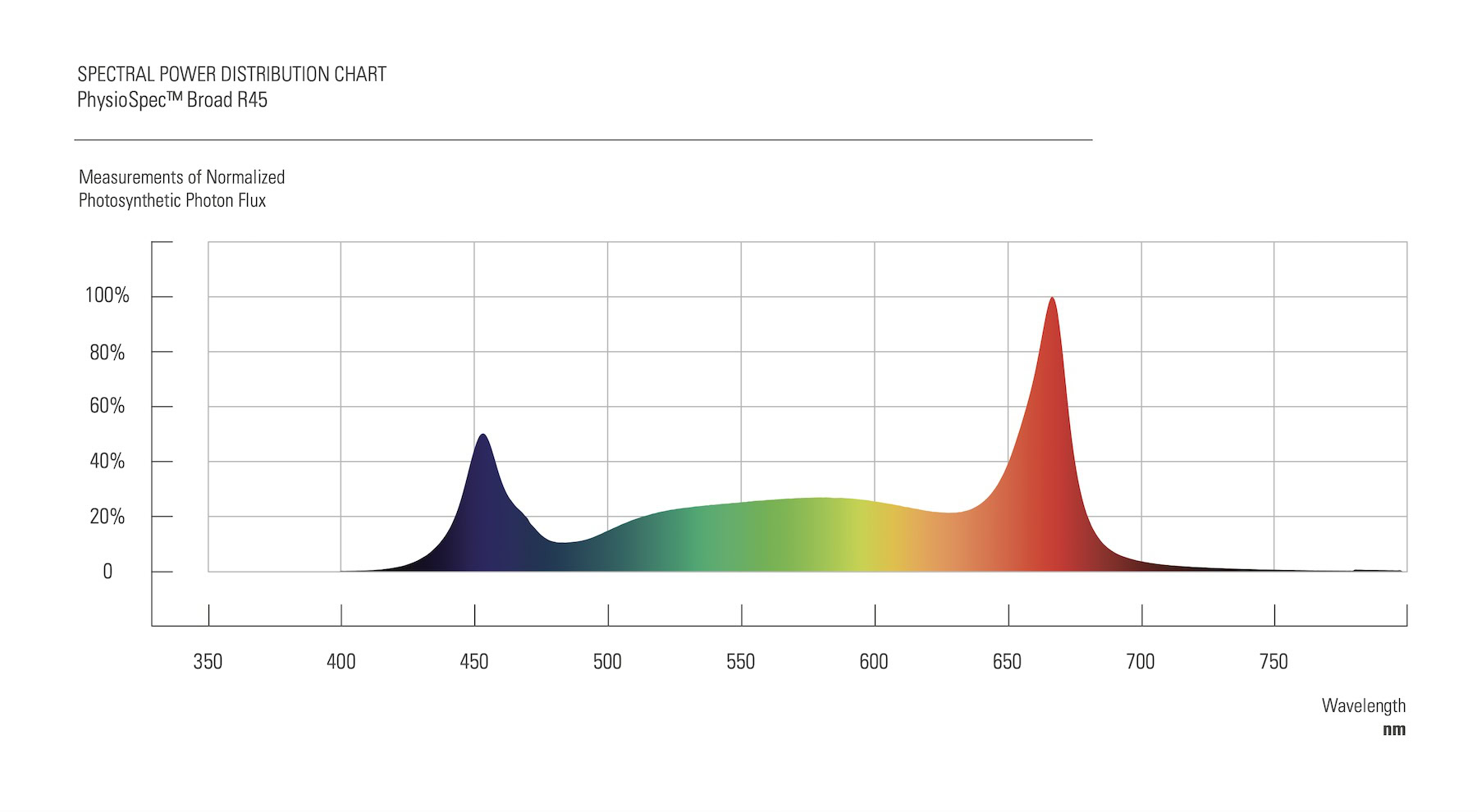

To create the most advanced spectrum for complete physiological plant and cannabis growth, we had to challenge every assumption. Not only did this make the spectra better, it made it beautiful. Previously, 660 nm (red) and 450 nm (blue) were the most efficient LED packages, and coincided with peak Chl A and Chl B absorption areas. This led to a negligence of key photoreceptors and pigments outside this range.

PhysioSpec Indoor is a full-cycle spectrum optimized for rapid growth and complete plant development.  Tailored for growing plants from propagation to senescence (germination, clones/cuttings, mothers, vegetative and flowering applications) in indoor environments.  With a CRI rating of 85, PhysioSpec Indoor offers a beautiful work and research environment with vivid colors and greater contrast to study the health of your crop.
